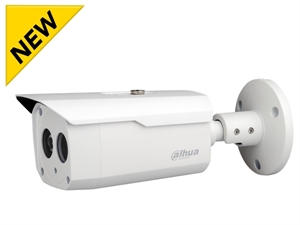

DH-HAC-HFW2401DP

Standard:

HD-CVI, PAL

Sensor:

1/3 " Progressive Scan CMOS

Matrix size:

4.1 Mpx

Resolution:

2560 x 1440  - 3.7 Mpx ,
1920 x 1080  - 1080p
1280 x 720  - 720p
960 x 576  - 960H, PAL

Lens:

3.6 mm

View angle:

79 °

IR illuminator support:

ICR - Movable InfraRed filter

Video output:

·  HD-CVI, 1 Vpp / 75 Ω

·  CVBS, 1 Vpp / 75 Ω

S/N ratio:

> 65 dB

Range of IR illumination:

80 m

IR illuminator power adjustment:

Automatic

OSD menu:

OSD menu available via DAHUA recorder

Main features:

·  WDR - 120 dB - Wide Dynamic Range

·  2D-DNR / 3D-DNR - Digital Noise Reduction

·  F-DNR (Defog) - Reduction of image noise caused by precipitation

·  ICR - Movable InfraRed filter

·  BLC/HLC - Back Light / High Light Compensation

·  AGC - Automatic Gain Control

·  Motion Detection - max. 4 zones

·  Privacy zones - max. 8

·  Mirror - Mirror image

·  Auto White Balance

Power supply:

12 V DC / 500 mA

Power consumption:

< 6 W

Housing:

Compact, Aluminum

Color:

White

"Index of Protection":

IP67

Operation temp:

-30 °C ... 60 °C

Weight:

0.64 kg

Dimensions:

242  x 90  x 90 mm

Manufacturer / Brand:

DAHUA
