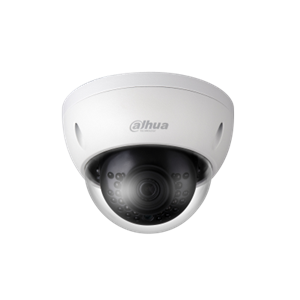

Model
|
DH-IPC-HDBW1320EP-0360B
|
|
Camera
|
| Matrix |
1/3 "CMOS 3Mp |
| Effective pixels |
2304 (H) x 1536 (V) |
| Scanning system |
Progressive |
| Electronic Shutter Speed |
Auto / Manual, 1s ~ 1 / 100000s |
| Min. lighting |
0. 1Lux / F2.0 (color), 0Lux / F2.0 (infrared on) |
| Signal-to-noise ratio |
More than 50 dB |
| Video Output |
No |
|
Camera Features
|
Infrared LEDs with max. range
|
30m |
| Day Night |
Auto (ICR) / Color / B / W |
| Backlight Compensation |
BLC / HLC / DWDR |
| White balance |
Auto / Manual |
| Gain control |
Auto / Manual |
| Noise Reduction |
3D |
| Privacy Mask |
Up to 4 areas |
|
Lens
|
| Focal length |
3.6mm |
| Max. opening of the diaphragm |
F2.0 (F2.0) |
| Adjusting the focus |
Management |
| Viewing Angle |
H: 81 ° |
| Lens type |
Fixed Lens |
| Mounting type |
Embedded in the panel |
|
Video
|
| Compression standard |
H.264 / H.264H / H.264B / MJPEG |
| Resolution |
3M (2048 × 1536) (2304 × 1296) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1 ( 704 × 576/704 × 480) / CIF (352 × 288/352 × 240) |
| Frame frequency |
Main stream |
3M (1 ~ 20fps) / 1080P (1 ~ 25 / 30fps) |
| Additional flow |
D1 (1 ~ 25/30 frames per second) |
| Transmission speed |
H.264: 4kbps ~ 8192kbps |
|
Audio
|
| Compression standard |
No |
| Interface |
No |
|
Net
|
| Ethernet |
RJ-45 (10 / 100Base-T) |
| Wi-Fi |
No |
| Protocol |
IPv4 / IPv6, HTTP, HTTPS, TCP / IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, PPPOE, FTP, IP Filter, QoS |
| Compatibility |
ONVIF, CGI |
| Max. number of users |
20 Users |
| Smartphones |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary interface
|
| Memory Slot |
|
| 485 |
No |
| Alert |
No |
Passive infrared motion sensor
|
No |
|
General information
|
| Food |
12 V, PoE (802.3af) |
| Power Consumption |
<4W (IR on) |
| terms of Use |
-30 ° C ~ + 60 ° C, less than 95% relative humidity |
| Degree of protection |
IP67 |
| Anti-vandal protection |
IK10 |
| Dimensions |
Φ110mm × 81mm |
| The weight |
0.47kg |
