Model
|

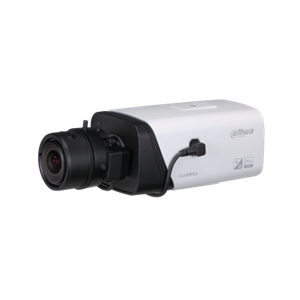

DH-IPC-HF5231EP
|
|
Camcorder
|
|
Matrix
|
1 / 2.8 "CMOS
|
|
Resolution
|
2Mn
|
|
RAM / ROM
|
256MB / 32MB
|
|
Sensitivity
|
0.004Lc @ F1.2 (color, 1 / 3c)
0.04Lk @ F1.2 (color, 1 / 30s)
0.002Lk @ F1.2 (B / W, 1 / 3c)
0.02Lc @ F1.2 (B / W, 1 / 30s)
|
|
Signal to noise ratio
|
More than 50dB
|
|
IR illumination range
|
No
|
|
IR illumination control
|
No
|
|
IR illumination module
|
No
|
|
Lens
|
|
Mounting type
|
C / CS
|
|
Video analytics
|
|
Functions IVS
|
Line crossing (Tripwire)
|
|
Area Control / Intrusion Intrusion
|
|
Missing and abandoned items (Object Abandoned / Missing)
|
|
Additional functions
analysts
|
Face Detection
|
|
Video
|
|
Compression
|
H.265 + / H.265 / H.264 + / H.264
|
|
Video Streams
|
3
|
|
Resolution
|
1080P (1920 × 1080) / 1.3Mp (1280x960) / 720P (1280x720) / D1 (704x576 / 704x480) / VGA (640x480) / CIF (352x288 / 342x240)
|
|
Frame frequency
|
Main stream
|
1080P (1 ~ 50k / s)
|
|
Additional thread 1
|
D1 (1 ~ 50k / s)
|
|
Additional thread 2
|
1080P (1 ~ 25k / s)
|
|
Bit Rate Type
|
CBR / VBR
|
|
Bitrate
|
H.264: 24 ~ 9472 Kbps / s
H.265: 14 ~ 5632 Kbps / s
|
|
Day Night
|
Auto (ICR) / Color / B / W
|
|
Backlight Compensation
|
BLC / HLC / WDR (120dB)
|
|
White balance
|
Auto / Natural / Street lamp / Street / Manual
|
|
Signal Strength
|
Auto / Manual
|
|
Noise Reduction (DNR)
|
3D DNR
|
|
Motion Detection
|
Supported by
|
|
Area of interest (ROI)
|
Supported by
|
|
Electronic Image Stabilization (EIS)
|
No
|
|
Function "Intelligent IR illumination" (Smart IR)
|
No
|
|
Function "Anti-Fog" (Defog)
|
No
|
|
Digital zoom
|
16x
|
|
Rotating an image
|
0 ° / 90 ° / 180 ° / 270 °
|
|
Mirroring
|
Supported by
|
|
Private Areas
|
Up to 4 zones
|
|
Audio
|
|
Compression
|
G.711a / G.711Mu / AAC / G.726
|
|
Net
|
|
Ethernet
|
RJ-45 (10 / 100Base-T)
|
|
Network Protocols
|
HTTP; HTTPs; TCP / IP; ARP; RTSP; RTP; UDP; MTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; QoS; UPnP; NTP; Bonjour; 802.1x; ICMP; IGMP; SNMP; Multicast
|
|
Compatibility
|
ONVIF, CGI
|
|
Maximum number of connections
|
Up to 20 users
|
|
Memory card slot
|
Micro SD up to 128GB
|
|
Web interface
|
IE / Chrome / Firefox / Safari
|
|
Software
|
Smart PSS, DSS, Easy4ip
|
|
Mobile platforms
|
iOS, Android
|
|
Interfaces
|
|
Analog video output (960H)
|
1
|
|
Audio Inputs / Outputs
|
1/1, 1 built-in microphone
|
|
RS485
|
1
|
|
Alarm Inputs / Outputs
|
2/1
|
|
Power supply
|
|
Food
|
DC 12V, AC 24V, PoE (802.3af) (class 0)
|
|
Consumption
|
Up to 5W
|
|
terms of Use
|
|
Working conditions
|
-30 ~ + 60 ° C, relative humidity
less than 95%
|
|
Storage conditions
|
-30 ~ + 60 ° C, relative humidity
less than 95%
|
|
Protection class
|
No
|
|
Vandal resistant
|
No
|
|
Total information
|
|
Housing material
|
Metal
|
|
Dimensions
|
135.4mm × 74.4mm × 65.5mm
|
|
Net weight
|
0.66kg
|
|
Gross weight
|
0.77kg
|
