Model
|

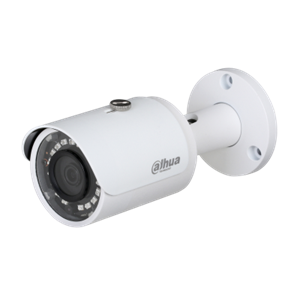

DH-IPC-HFW1220SP-0360B
|
|
Camcorder
|
|
Matrix
|
1 / 2.9 "CMOS
|
|
Resolution
|
2Mn
|
|
RAM / ROM
|
256MB / 16MB
|
|
Sensitivity
|
0.1Lq @ F2.0 (color) / 0Lk @ F2.0 (IR ON)
|
|
Signal to noise ratio
|
More than 50dB
|
|
IR illumination range
|
Up to 30m
|
|
IR illumination control
|
Auto / Manual
|
|
IR illumination module
|
18 diodes
|
|
Lens
|
|
Focal length
|
3.6mm
|
|
Max. aperture
|
F2.0
|
|
Viewing Angle
|
Horizontal: 83 °; Vertical: 44 °
|
|
DORI distances
|
Lens
|
Detection
|
Obs.
|
Detachable.
|
Identity
|
|
3.6mm
|
57m
|
23m
|
11m
|
6m
|
|
Video
|
|
Compression
|
H.264 / H.264 +
|
|
Video Streams
|
2
|
|
Resolution
|
1080P (1920 × 1080) / 720P (1280 × 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352 × 240)
|
|
Frame frequency
|
Main stream
|
2Mn (1 ~ 25k / s)
|
|
Additional flow
|
D1 / CIF (1 ~ 25k / s)
|
|
Bit Rate Type
|
CBR / VBR
|
|
Bitrate
|
H.264: 24 ~ 8192kbps
|
|
Day Night
|
Auto (ICR) / Color / B / W
|
|
Backlight Compensation
|
BLC / HLC / DWDR
|
|
White balance
|
Auto / Natural / Street lamp / Street / Manual
|
|
Signal Strength
|
Auto / Manual
|
|
Noise Reduction (DNR)
|
3D DNR
|
|
Motion Detection
|
Supported by
|
|
Area of interest (ROI)
|
Supported by
|
|
Function "Intelligent IR illumination" (Smart IR)
|
Supported by
|
|
Digital zoom
|
16x
|
|
Rotating an image
|
0 ° / 90 ° / 180 ° / 270 °
|
|
Mirroring
|
Supported by
|
|
Private Areas
|
Up to 4 zones
|
|
Audio
|
|
Compression
|
No
|
|
Net
|
|
Ethernet
|
RJ-45 (10 / 100Base-T)
|
|
Network Protocols
|
HTTP; HTTPs; TCP / IP; ARP; RTSP; RTP; UDP; MTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; QoS; UPnP; NTP; Bonjour; 802.1x; ICMP; IGMP; SNMP; Multicast
|
|
Compatibility
|
ONVIF, CGI
|
|
Maximum number of connections
|
Up to 20 users
|
|
Web interface
|
IE / Chrome / Firefox / Safari
|
|
Software
|
Smart PSS, DSS, Easy4ip
|
|
Mobile platforms
|
iPhone, iPad, Android Phone
|
|
Interfaces
|
|
Analog video output (960H)
|
No
|
|
Audio Inputs / Outputs
|
No
|
|
RS485
|
No
|
|
Alarm Inputs / Outputs
|
No
|
|
Power supply
|
|
Food
|
DC 12V, PoE (802.3af) (class 0)
|
|
Consumption
|
Up to 6.4W
|
|
terms of Use
|
|
Working conditions
|
-30 ~ + 60 ° C, relative humidity
less than 95%
|
|
Storage conditions
|
-30 ~ + 60 ° C, relative humidity
less than 95%
|
|
Protection class
|
IP67
|
|
Vandal resistant
|
No
|
|
Total information
|
|
Housing material
|
Metal + Plastic
|
|
Dimensions
|
Φ70mm × 164.7mm
|
|
Net weight
|
0.38kg
|
|
Gross weight
|
0.44kg
|
| |
|
|
|
|
|
|
