Brand Model

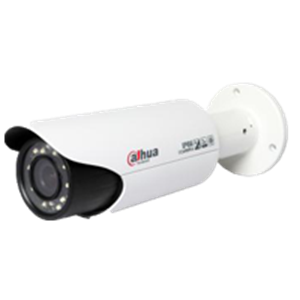

DH-IPC-HFW3101CP
DH-IPC-HFW3101CN
Camera
Image Sensor
1/3” 1.3Megapixel Aptina CMOS
Effective Pixels
1280(H)x960(V)
Scanning System
Progressive scan
Electronic Shutter Speed
Auto/Manual 1/3~1/10000
Auto/Manual 1/4~1/10000
Min. Illumination
0. 1LUX/F1.2 (Color), 0.005LUX/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio
>50dB
Video Output
1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length
20m
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (128dB)
White Balance
Auto
Gain Control
Auto / Manual
Noise Reduction
2D
Privacy Masking
Up to 4 areas
Lens
Focal Length
2.8~12mm
Max Aperture
F1.4
Focus Control
Manual
Angle of View
H: 92°(Wide)~ 27.2°(Tele)
Lens Type
Manual / Auto Iris (DC)
Mount Type
Board-in Type
Video
Compression
H.264 / MJPEG
Resolution
1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) /
1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240) /
Frame Rate
Main Stream
1.3M/720P(1 ~ 25/30fps)
Sub Stream
D1 / CIF(1 ~ 25/30fps)
Bit Rate
H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Audio
G.711a / G.711u (64kbps)/ PCM(128kbps)
Interface
1/1 channel In/Out
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF
ONVIF Ver. 2.0
Max. User Access
10 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot
Micro SD, Max 32GB
Alarm
2/1 channel In/Out
General
Power Supply
DC12V(AC24 optional), PoE(802.3af)
Power Consumption
< 10W
Working Environment
-10°C~+60°C, 10%~90%
Ingress Protection
IP66
Dimension(W×D×H)
φ104mm × 306.7mm
Weight
1.25Kg
