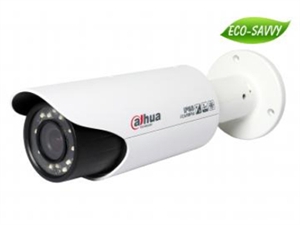

Model
DH-IPC-HFW5100CP
DH-IPC-HFW5100CN
Camera
Image Sensor
1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels
1280(H)x960(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/10000s
Auto/Manual, 1/4~1/10000s
Min. Illumination
0. 01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio
More than 50dB
Video Output
1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length
30m
Day/Night
Auto(ICR)/Color/B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto/Manual
Gain Control
Noise Reduction
3D
Privacy Masking
Up to 4 areas
Lens
Focal Length
2.8mm~12mm
Max Aperture
F1.4
Focus Control
Manual
Angle of View
H: 92°~27.2°
Lens Type
Manual/Auto Iris(DC)
Mount Type
Board-in Type
Video
Compression
H.264/ MJPEG
Resolution
1.3M(1280×960)/720P(1280×720)/D1(704×576)/CIF(352×288)
1.3M(1280×960)/720P(1280×720)/D1(704×480)/CIF(352×240)
Frame Rate
Main Stream
1.3M/720P(1 ~ 25/30fps)
Sub Stream
D1/CIF(1 ~ 25/30fps)
Bit Rate
H.264: 32K ~ 8192Kbps
Audio
G.711a/G.711u(64kbps)/PCM(128kbps)
Interface
1/1 channel In/Out
Network
Ethernet
RJ-45 (10/100Base-T)
Wi-Fi
N/A
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF
ONVIF Profile S
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot
Micro SD, Max 32GB
RS485
Alarm
2/1 channel In/Out
PIR Sensor Range
General
Power Supply
DC12V (AC24V optional), PoE (802.3af)
Power Consumption
<7.5W
Working Environment
-20°C~+60°C(-H:-40°C~+60°C), Less than 95% RH
Ingress Protection
IP66
Vandal Resistance
Dimensions
φ104×306.7
Weight
1.25kg
