Model

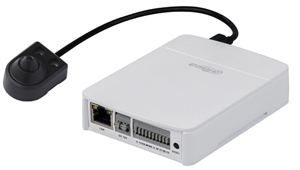

DH-IPC-HUM8101P
DH-IPC-HUM8101N
Camera
Image Sensor
1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels
1280(H)x960(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Auto/Manual, 1/4~1/100000s
Min. Illumination
0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)
S/N Ratio
More than 50dB
Video Output
N/A
Camera Features
Max. IR LEDs Length
Day/Night
Auto(Electronic)/Color/B/W
Backlight Compensation
BLC / HLC/WDR(100dB)
White Balance
Auto/Manual
Gain Control
Noise Reduction
3D
Privacy Masking
Up to 4 areas
Lens
Focal Length
3.6mm
Max Aperture
F2.8
Focus Control
Manual
Angle of View
77°
Lens Type
Fixed lens
Mount Type
Board-in Type
Video
Compression
H.264/MJPEG
Resolution
1.3M(1280×960)/720P(1280×720)/D1(704×576)/CIF(352× 288)
Frame Rate
Main Stream
1.3M/720P(1 ~ 25/30fps)
Sub Stream
D1/CIF(1 ~ 25/30fps)
Third Stream
720P/ D1/CIF(1 ~ 25/30fps)
Bit Rate
H.264: 48K ~ 8192Kbps
Audio
G.711a / G.711u/PCM
Interface
1/1 channel In/Out
Smart Function
Smart detection
Tripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
Network
Ethernet
RJ-45 (10/100/1000Base-T)
Wi-Fi
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility
ONVIF, PSIA,CGI
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot
Micro SD, Max 64GB
RS485
Alarm
General
Power Supply
DC12V, PoE (802.3af)
Power Consumption
Max 7W
Working Environment
-30°C~+60°C, Less than 95% RH
Ingress Protection
Dimensions
109.7mm×82.8mm×24.0mm
Weight
0.46Kg
