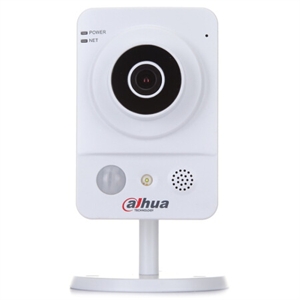

DH-IPC-K100W

Model

DH-IPC-K100

DH-IPC-K100A

DH-IPC-K100W

Camera

Image Sensor

1/3” 1.3Megapixel Aptina CMOS

Effective Pixels

1280(H)x960(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3~1/10000 (PAL)
Auto/Manual 1/4~1/10000(NTSC)

Min. Illumination

0.1lux/F1.8(color),

S/N Ratio

>50dB

Camera Features

Max. LEDs Length

10m

Day/Night

Auto(Electronic) / Color / B/W

White Balance

BLC / HLC / DWDR

Gain Control

Auto/Manual

Noise Reduction

2D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm

Max Aperture

F1.8

Angle of View

70°

Mount Type

Board-in Type

Video

Compression

H.264/MJPEG

Resolution

1.3M(1280x960)/720P(1280x720)/D1/CIF

Frame Rate

Main Stream

1.3M(1~15fps)/720P/D1(1~25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 32K ~ 8096Kbps,MJPEG:32K~12288Kbps

Audio

Compression

N/A

G.711a / G.711u (64kbps)/ PCM(128kbps)

Interface

N/A

Built-in Mic, Built-in speaker

Network

Ethernet

RJ-45 (10/100Base-T)

RJ-45(10/100Base-T) / Wi-Fi(802.11b/g)

Protocol

IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Ver. 2.0

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

Micro SD, Max 32GB

PIR Sensor Range

Up to 6m

Alarm

N/A

1/1 channel In/Out

General

Power Supply

DC12V,PoE(802.3af)

DC12V

Power Consumption

<4W

Working Environment

-10°C~+50°C, 10%~90%

Dimensions(W×D×H)

66.6×43mm×131.2

Weight

0.35kg (0.4kg with bracket)
