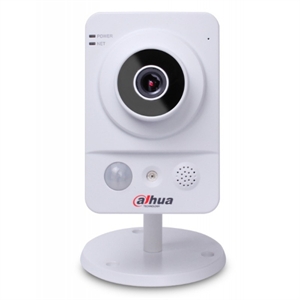

DH-IPC-K200W

Model

DH-IPC-K200

DH-IPC-K200A

DH-IPC-K200W

Camera

Image Sensor

1/3” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000

Min. Illumination

0.05lux/F1.8(color)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. LEDs Length

10m

Day/Night

Auto(Electronic) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm

Max Aperture

F1.8

Focus Control

Manual

Angle of View

86.5°

Lens Type

Fixed Lens

Mount Type

Board-in Type

Video

Compression

H.264/MJPEG

Resolution

1080P(1920x1080)/720P(1280x720)/D1/CIF

Frame Rate

Main Stream

1080P/720P(1~25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 16K ~ 8192Kbps

Audio

Compression

N/A

G.711a / G.711u / PCM

Interface

N/A

Built-in Mic, Built-in speaker

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Wi-Fi(802.11b/g)

Protocol

IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Profile S

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

Micro SD, Max 64GB

N/A

RS485

N/A

Alarm

N/A

1/1 channel In/Out

PIR Sensor Range

Up to 6m

General

Power Supply

DC12V,PoE(802.3af)

DC12V

Power Consumption

<4W

<4.5W

<5W

Working Environment

-20°C~+60°C, Less than 95%RH

-20°C~+50°C,
Less than 95%RH

Ingress Protection

N/A

Vandal Resistance

N/A

Dimensions(W×D×H)

66.6mm×99.5mm×131.2mm

Weight

0.35Kg (0.4kg with bracket)
