Model

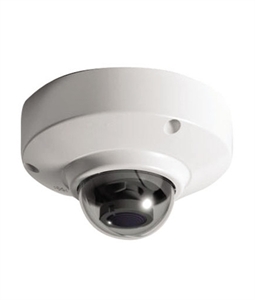

IPC-E200P
Camera
Image Sensor
1/3 "2.8 Megapixel Exmor CMOS
Effective Pixel
1920 (Y) x 1080 (D)
Scanning System
progressive
Electronic Shutter Speed
Auto / Manual, 1/3 ~ 1/10000
Min. Lighting
Color: 0.1 Lux / F1.4
S / N Ratio
50 dB denier
Camera Features
Night and day
Automatic (ICR) / Color / S / B
Back Light Pattern
BLC
White Balance
Automatic
Gain Control
Auto / Manual
Noise Reduction
2D
Custom Field Masking
Up to 4 Area
Lens
Focus Length
1.25 mm Fish Eye Lens
Max. December
F1.8
Point of view
H: 180º ± 5 °
Mounting Type
Board Type
Video
Compression Formats
H.264 / MJPEG
Resolution
1080P (1920 x 1080) / SXGA (1280 x 1024) 720P (1280 x 720)
/ D1 (704x576) / CIF (352x288)
Frame Rate
Main Current
1080P (1 to 30 fps) / SXGA (1 to 30 fps) / 720P (1 to 25/30 fps)
Lower Current
D1 / CIF (1 ~ 25 / 30fps)
Bit Rate
H.264: 32K to 8192Kbps, MJPEG: 32K to 12288Kbps
Network
Ethernet
RJ-45 (10 / 100Base-T)
protocols
IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF
ONVIF Profile S
Max. Employee Entry
10 users
Smart Phone Support
i-Phone, i-Pad, Android, Windows Phone
General
Power
DC12V, PoE (802.3af)
Memory Slot
Micro SD
Power consumption
<2.5W
Working Environment
-10 ° C to +60 ° C, ≤95% RH
Certificate of Protection
IP66
Dimensions
Ø110mm × 54mm
Weight
0.25 kg
