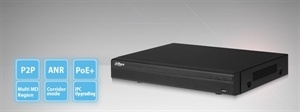

Model
|
DH-NVR4108H-8P
|
DH-NVR4116H-8P
|
|
System
|
|
Main Processor
|
Dual-core embedded processor
|
|
Operating System
|
Embedded LINUX
|
|
Video & Audio
|
|
IP Camera Input
|
8 channel
|
16 channel
|
|
Two-way Talk
|
1 channel Input, 1 channel Output, RCA
|
|
Display
|
|
Interface
|
1 HDMI, 1 VGA
|
|
Resolution
|
1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
|
|
Display Split
|
1/4/8/9
|
1/4/8/9/16
|
|
OSD
|
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
|
|
Recording
|
|
Compression
|
H.264 / MJPEG
|
|
Resolution
|
5Mp (2560 × 1920) / 3Mp (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1 (704 × 576/704 × 480)
|
|
Record Rate
|
80Mbps
|
|
Bit Rate
|
48 ~ 8192kbps
|
|
Record Mode
|
Manual, Schedule (Regular, MD, Alarm), Stop
|
|
Record Interval
|
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
|
|
Video Detection & Alarm
|
|
Trigger Events
|
Recording, PTZ, Tour, Alarm, Push Video, Email, FTP, Buzzer & Screen tips
|
|
Video Detection
|
Motion Detection, MD Zones: 396 (22 × 18), Video Loss & Blank Camera
|
|
Alarm Input
|
2 channel
|
|
Relay Output
|
1 channel
|
|
Playback & Backup
|
|
Sync Playback
|
1/4/8
|
1/4/8/16
|
|
Search Mode
|
Time / Date, Alarm, Exact search, Smart search
|
|
Playback Function
|
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
|
|
Backup Mode
|
USB Device / Network / Internal SATA burner
|
|
Network
|
|
Ethernet
|
1 RJ-45 port (10 / 100Mbps)
|
|
PoE
|
8 ports (IEEE802.3af / at)
|
|
Network Function
|
HTTP, TCP / IP, IPv4 / IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Dahua IP Camera Support, DVR, NVS and etc. ), SNMP, P2P
|
|
Max. User Access
|
128 users
|
|
Smart Phone
|
iPhone, iPad, Android
|
|
Storage
|
|
Internal HDD
|
1 SATA port, up to 4TB
|
|
Auxiliary Interface
|
|
USB
|
2 ports, USB2.0
|
|
General
|
|
Power Supply
|
Single, DC48V / 2A
|
|
Power Consumption
|
NVR: 10W (without HDD)
|
|
PoE: Max.25.5W (for one port)
|
|
Working Environment
|
-10 ° C ~ + 55 ° C / 10% ~ 90% RH / 86 ~ 106kpa
|
|
Dimension
(W × D × H)
|
Mini 1U, 325mm × 250mm × 55mm
|
|
Weight
|
1.25KG (without HDD)
|
