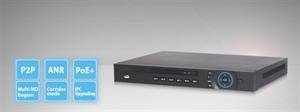

Model
|
DH-NVR4204-P
|
DH-NVR4208-P
|
DH-NVR4216-P
|
DH-NVR4232-P
|
|
System
|
|
Main Processor
|
Dual-core embedded processor
|
|
Operating System
|
Embedded LINUX
|
|
Video & Audio
|
|
IP Camera Input
|
4 channel
|
8 channel
|
16 channel
|
32 channel
|
|
Two-way Talk
|
1channel Input, 1channel Output, RCA
|
|
Display
|
|
Interface
|
1 HDMI,1 VGA
|
|
Resolution
|
1920×1080, 1280×1024, 1280×720, 1024×768
|
|
Display Split
|
1/4
|
1/4/8/9
|
1/4/8/9/16
|
1/4/8/9/16
|
|
OSD
|
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
|
|
Recording
|
|
Compression
|
H.264/MJPEG
|
|
Resolution
|
5Mp（2560×1920）/3Mp（2048×1536）/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
|
|
Record Rate
|
200Mbps
|
|
Bit Rate
|
48~ 8192kbps
|
|
Record Mode
|
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
|
|
Record Interval
|
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
|
|
Video Detection & Alarm
|
|
Trigger Events
|
Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips
|
|
Video Detection
|
Motion Detection,MD Zones: 396(22×18), Video Loss & Camera Blank
|
|
Alarm Input
|
4 channel
|
|
Relay Output
|
2 channel
|
|
Playback & Backup
|
|
Sync Playback
|
1/4
|
1/4/8
|
1/4/8/16
|
1/4/8/16
|
|
Search Mode
|
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
|
|
Playback Function
|
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
|
|
Backup Mode
|
USB Device/Network/Internal SATA burner
|
|
Network
|
|
Ethernet
|
1 RJ-45 port (10/100/1000Mbps)
|
|
PoE
|
4 ports (IEEE802.3af/at)
|
|
Network Function
|
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
|
|
Max. User Access
|
128users
|
|
Smart Phone
|
iPhone, iPad, Android
|
|
Storage
|
|
Internal HDD
|
2 SATA ports, up to 8TB
|
|
Auxiliary Interface
|
|
USB
|
2 ports (1 Rear USB3.0, 1 Front USB2.0)
|
|
RS232
|
1 port, For PC communication&Keyboard
|
|
RS485
|
1 port, For PTZ control
|
|
General
|
|
Power Supply
|
DC12V/4A
|
|
PoE: DC48V/1.04A
|
|
Power Consumption
|
NVR: 20W(without HDD)
|
|
PoE: Max.25.5W for single port
|
|
Working Environment
|
-10°C ~+55°C / 10%~90%RH / 86~106kpa
|
|
Dimension
(W×D×H)
|
1U, 375mm×282mm×56mm
|
|
Weight
|
2.0KG(without HDD)
|
| |
|
|
|
|
|
