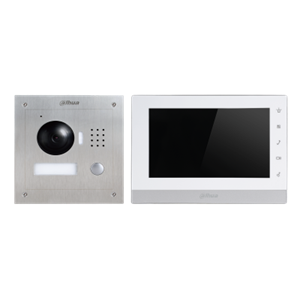

Video Outdoor Station
Model
VTO2000A
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Image Sensor
1/3” 1.3MP CMOS
Lens
2.8mm
Angle of View
D:120° H:90°
Day/Night
Color Image
Audio
Audio Compression
G.711
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Support Dual-way Bidirectional talk
Operation Mode
Keypad
Single Mechanical Button
Interface
Door Control
2(1 relay out for main lock, 1 extended by access control module)
Alarm In
2(1ch unlock button, 1ch feedback)
RS485
1
Network
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
General
Ingress Protection
IP54,IK07
Tamper Switch
Installation
Surface & Flush
Material
Stainless steel
Power
DC 12V, or supply directly by VTNS1060A
Power Consumption
Standby ≤1W, Work ≤10W
Working Temperature
﹣40°C~+60°C
Relative Humidity
10%~90%RH
Dimensions
129.9mm×32.2mm×140mm
Weight
0.8Kg
Video Indoor Monitor
VTH1550CHW
Embedded Micro Process
All-direction Microphone
Built-in Loudspeaker
Display
LCD Screen
7“ 800x480, Capacitive
Input
Touch buttons
6
Alarm Out
Memory Slot
Micro SD, Max 32G
Surface
Standby ≤1.5W, work≤7W
-10°C~+55°C
200.5mm×136.5mm×22.0mm
