Technical Specification
Model

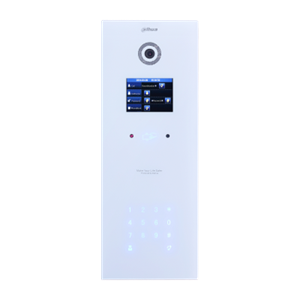

VTO1220BW
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Image Sensor
1/3” 1.3MP CMOS
Lens
3.6mm
Angle of View
D:95° H:75°
Day/Night
Color Image
Audio
Audio Compression
G.711
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Support Dual-way Bidirectional talk
Display
LCD Screen
3.5" TFT 320x240
Operation Mode
Keypad
Touch Button
Reader
Mifare Card
Approaching Induction
Body approaching
1m
Interface
Door Control
1
Alarm In
2(1ch unlock button, 1ch feedback)
RS485
Network
Ethernet
10M/100Mbps
Network Protocol
TCP/IP
General
Ingress Protection
IP65
Tamper Switch
Installation
Flush
Material
Tempered glass
Power
DC 12V
Power Consumption
Standby ≤1W, Work ≤10W
Working Temperature
﹣40°C~+60°C
Relative Humidity
10%~90%RH
Dimensions
150.0mm×408.0mm×46.4mm
Weight
1.6Kg
