Technical Specification
Model

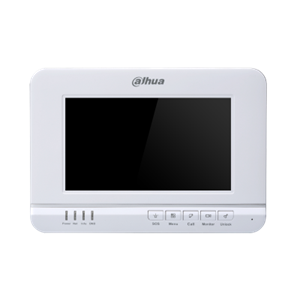

VTH1520A
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Audio
Audio Compression
G.711
Audio Input
All-direction Microphone
Audio Output
Built-in Loudspeaker
Bidirectional Talk
Support Dual-way Bidirectional talk
Display
LCD Screen
7“ 800x480, Resisitive
Operation Mode
Input
Mechanical buttons
Interface
Alarm In
8
Alarm Out
-
RS485
Network
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
General
Memory Slot
Embedded 4GB
Installation
Flush
Power
DC 12V/ supply directly by VTNS1060A
Power Consumption
Standby ≤1.5W, Work ≤7W
Working Temperature
﹣10°C~+55°C
Relative Humidity
10%~90%RH
Dimensions
221.2mm×154.3mm×25.8mm
Weight
0.8Kg
