Model
|

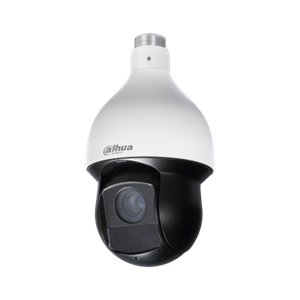

DH-SD59430I-HC
|
|
Camcorder
|
|
Matrix
|
1/3 "SONY CMOS
|
|
Resolution
|
4Mp
|
|
Sensitivity
|
Color: 0.05Лк @ F1.6 / 0Лк @ F1.6 (IR on)
|
|
Signal to noise ratio
|
More than 55dB
|
|
IR illumination range
|
Up to 100m
|
|
IR illumination control
|
Auto / Manual
|
|
IR illumination module
|
4 diodes
|
|
Lens
|
|
Focal length
|
4.5mm ~ 135mm
|
|
Aperture
|
F1.6 ~ F4.4
|
|
Viewing Angle
|
Horizontal: 60 ° ~ 2.2 °
|
|
Optical zoom
|
30x
|
|
Focus Control
|
Auto / Manual
|
|
Min. distance to the object
|
100mm
|
|
DORI distances
|
|
Note: The distance is calculated based on the sensor specification and laboratory test results in accordance with EN 62676-4, which defines the criteria for detection, observation, recognition and identification, respectively.
|
|
Detection
|
Observation
|
Recognition
|
Identification
|
|
2700m
|
1080m
|
540m
|
270m
|
|
PTZ functional
|
|
Viewing Angles
|
Horizontal: 0 ° ~ 360 °; Vertical: -15 ° ~ 90 °, auto rotation 180 °
|
|
Speed in manual mode
|
Pan: 0.1 ° ~ 300 ° / s; Tilt: 0.1 ° ~ 200 ° / s
|
|
Preset speed
|
Pan: 400 ° / s; Tilt: 300 ° / s
|
|
Number of presets
|
300
|
|
Modes
|
5 Templates; 8 tours; Pan; Scanning
|
|
Actions in the absence of commands
|
Calling the Preset / Scan / Tour / Bypass when there are no commands in the specified period
|
|
Protocols
|
DH-SD, Pelco-P / D (auto-detection)
|
|
Video
|
|
Resolution
|
4Mp (2592x1520) / 1080P (1920 × 1080) / 720P (1280 × 720)
|
|
Frame frequency
|
25 fps @ 1080P, 25/50 fps @ 720P
|
|
Video Output
|
1 channel BNC HDCVI HD video output / BNC CVBS video output (Switch mode)
|
|
Day Night
|
Auto (ICR) / Color / B / W
|
|
OSD menu
|
Supported by
|
|
Backlight Compensation
|
BLC / HLC / WDR (120dB)
|
|
White balance
|
Auto / ATW / Street / Room / Manually
|
|
Signal Strength
|
Auto / Manual
|
|
Noise Reduction (DNR)
|
Ultra DNR (2D / 3D)
|
|
Digital Magnification
|
16x
|
|
Rotating an image
|
180 °
|
|
Private Areas
|
Up to 24 zones
|
|
Interfaces
|
|
Video Output
|
1
|
|
Audio Inputs / Outputs
|
1/-
|
|
RS485
|
1
|
|
Alarm Inputs / Outputs
|
2/1
|
|
Power supply
|
|
Food
|
AC 24V
|
|
Consumption
|
Up to 13W, 23W (infrared on)
|
|
terms of Use
|
|
Working conditions
|
-40 ~ + 70 ° C, relative humidity less than 90%
|
|
Protection class
|
IP66
|
|
Vandal resistant
|
No
|
|
Total information
|
|
Housing material
|
Metal
|
|
Dimensions
|
Φ186mm × 309mm
|
|
Net weight
|
3.5kg
|
|
Gross weight
|
6.8kg
|
| |
|
|
|
|
