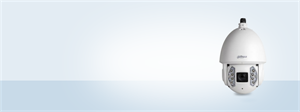

| Model |
DH-SD6AE530U-HN |
| Camera |
| Image Sensor |
1/1.9" Exmor CMOS |
| Effective Pixels |
5 Megapixels |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/1 ~ 1/30000s |
| Min. Illumination |
Color: 0.01Lux@F1.5; B/W: 0.001Lux@F1.5; 0Lux (IR on) |
| S/N Ratio |
More than 50dB |
| Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Camera Features |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
Support |
| White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control |
Auto / Manual |
| Noise Reduction |
Ultra DNR(2D/3D) |
| Privacy Masking |
Up to 24 areas |
| Digital Zoom |
4x |
| EIS |
Support |
| Defog |
Support |
| Lens |
| Focal Length |
6mm ~ 180mm (30x Optical zoom) |
| Max Aperture |
F1.5 ~ F4.3 |
| Focus Control |
Auto / Manual |
| FOV-H |
H: 61.2° ~ 2.1° |
| Close Focus Distance |
100mm~ 1500mm |
| PTZ |
| Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
| Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
| Preset |
300 |
| PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup |
Human-oriented focal length/ speed adaptation |
| Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Power up Action |
Auto restore to previous PTZ and lens status after power failure |
| Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
| Video |
| Compression |
H.265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG |
| Resolution |
5Mp(2560*1920)/3Mp(2048*1536)/1080P(1920*1080)/1.3Mp(1280*960)/720P(1280*720） |
| Frame Rate |
Main Stream |
5Mp(1~25/30fps)/3Mp(1~25/30fps)/1080P(1~50/60fps)/1.3Mp(1~25/30fps)/720P(1~25/30fps) |
| Sub Stream 1 |
D1/CIF(1~25/30fps) |
| Sub Stream 2 |
5Mp(1~20fps)/1080P(1~25/30fps)/1.3Mp(1~25/30fps)/720P(1~25/30fps) |
| Audio |
| Compression |
G.711a/G.711Mu/AAC/G.722 / G.726 |
| Interface |
1/1 channel In/Out |
| Intelligent Function |
| IVS(Optional) |
Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection |
| Face Detection |
Support |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
| Max. User Access |
20 users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot |
Micro SD, Max 128GB |
| Alarm |
7/2 channel In/Out |
| General |
| Power Supply |
AC24V/3A(±25%) |
| Power Consumption |
24W, 38W (IR on) |
| Working Environment |
-40ºC ~ 70ºC / Less than 95% RH |
| Ingress Protection |
IP67,IK10 |
| Dimensions |
Φ240mm×382mm |
| Weight |
6.8kg |
