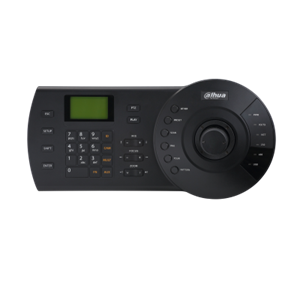

DHI-NKB1000

> Keyboard to Control > Dahua High Speed Dome > Dahua Standalone DVR > Dahua Network High Speed Dome > Network Video Server Connection > NKB1000: RS485, RS422, USB, RS232 & Network Functions > Three Dimensional Joystick Control of PTZ Functions > Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions Auxiliary Functions > On-Screen Menu & User Operation Procedure Tips > Connect to SmartPSS via USB

Brand: Dahua

Model	DHI-NKB1000
Main characteristics
Control buttons	Electromechanical
Joystick Control	3-axis
Interfaces	RJ-45, RS232, RS485, RS422, USB
Connectivity	On the network, direct connection
Direct connection	Interface: RS232 / RS485
Direct connection	Protocol: DH2 / DH-SD / PELCO-D / PELCO-P / PELCO-D1 / PELCO-P
Network connection	Interface: RJ45
Network connection	Connection: IP address / port / protocol
Display	LCD, 75.2mm × 33.85mm
Power supply
Food	Input: AC 100 ~ 230V; 50 ~ 60Hz, output: 12V / 1A
Consumption	Up to 5W
terms of Use
Working conditions	-10 ~ + 55 ° C, relative humidity 10% ~ 90%
Total information
Dimensions	330mm × 160mm × 37.5mm
The weight	2.5kg
