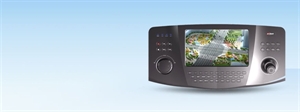

DHI-NKB3000T

> Keyboard to Control -DAHUA Standalone DVR -DAHUA (Network) High Speed Dome -DAHUA High Speed Dome -Central Management Platform -Network Video Server > RS232, RS485 & Network Connections > Four Dimensional Joystick Control of PTZ Functions > Support full HD 1080p live view; Support HDMI & VGA sync output > Support snapshot and recording to U-disk > Support Video-Wall display > Support external Wi-Fi (Optional) > Support bidirectional talk > Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control > Auxiliary Functions, OSD and operation guides Control

Brand: Dahua

Model		DH-NKB3000
System
Main Processor		Industrial embedded microprocessor
Operation System		Embedded LINUX
Audio
Compression		G.711A
Output		1ch output
Bidirectional Talk		1ch input and 1ch output
Display
Display split		1/4/8/9/16
Resolution		1080P/720P/D1/HD1/BCIF/CIF/QCIF
Screen		10.2" touch screen LCD (touch pen)
General
Keyboard Panel		Electromechanical
Joystick		4-axis(zoom, focus, iris)
Control	Output Control	Support video-wall display HDMI/VGA output
	Control Mode	Direct Mode	Interface: 1 RS232/ 2 RS485 DVR Protocol: DH1/DH2 Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1 and etc.
		Network Mode	Interface: RJ45(1 RJ-45 port (10/100/1000M)) / Wi-Fi DVR/Network Dome: IP Address/Port/Protocol
Max Remote Users		20 (each can manage up to 256 unit devices)
USB Interface		2 ports, for mouse control & backup
Environmental
Power Supply		DC12V
Power Consumption		5W
Working Temperature		-10°C ~+55°C
Working Humidity		10%~90%
Atmosphere Pressure		86kpa~106kpa
Dimension		480mmx240mmx87mm (W×D×H) (height: exclude joystick)
Weight		4.5KG
