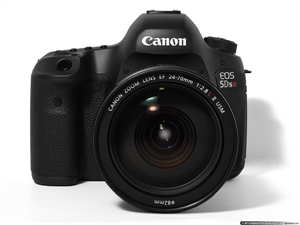

Canon EOS 5DS R

Lens Mount

Canon EF

Camera Format

Full-Frame (1.0x Crop Factor)

Pixels

Actual: 53 Megapixel
Effective: 50.6 Megapixel

Max Resolution

50.3 MP: 8688 x 5792

Aspect Ratio

1:1, 3:2, 4:3, 16:9

Sensor Type / Size

CMOS, 36 x 24 mm

File Formats

Still Images: JPEG, RAW
Movies: MOV, MPEG-4 AVC/H.264
Audio: Linear PCM (Stereo)

Bit Depth

14-bit

Dust Reduction System

Yes

Memory Card Type

CompactFlash
SD
SDHC
SDXC

Focus Control

Focus Type

Auto & Manual

Focus Mode

Automatic (A), Full-time Servo (F), Manual Focus (M), Single-servo AF (S)

Autofocus Points

Phase Detection:61, 41 cross-type

Viewfinder/Display

Viewfinder Type

Pentaprism

Viewfinder Eye Point

21.00 mm

Viewfinder Coverage

100%

Viewfinder Magnification

Approx. 0.71x

Diopter Adjustment

- 3 to +1 m

Display Screen

3.2" Rear Screen   LCD (1,040,000)

Screen Coverage

100%

Diagonal Angle of View

170.0°

Exposure Control

ISO Sensitivity

Auto, 100-6400 (Extended Mode: 50-12800)

Shutter

Type: Mechanical
Speed: 1/8000 - 30 seconds

Mirror Lock-Up

Yes

Metering Method

Center-weighted average metering, Evaluative metering, Partial Metering, Spot metering

Exposure Modes

Modes: Aperture Priority, Bulb, C1, C2, Custom, Manual, Programmed Auto, Scene Auto Selector, Shutter Priority
Metering Range: EV 0.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)

White Balance Modes

Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight

Flash

Flash Modes

TTL Auto
Wireless

Built-in Flash

No

Max Sync Speed

Mechanical Shutter: 1 / 200 seconds

Flash Compensation

-3 EV to +3 EV (in 1/3 EV steps)

Dedicated Flash System

eTTL

External Flash Connection

Hot Shoe, PC Terminal

AV Recording

Video Recording

Yes, NTSC/PAL

File Size

1920 x 1080p (Full HD)

Video Format

High Definition
MPEG AVC/H.264
1920 x 1080p / 29.97 fps / 25 fps / 23.98 fps
Standard Definition
MPEG AVC/H.264
1280 x 720p / 59.94 fps / 50 fps
MPEG AVC/H.264
640 x 480p / 29.97 fps / 25 fps

Exposure Control

Auto: Shutter Speed, Aperture, ISO
Manual: Shutter Speed, Aperture, ISO

ISO Sensitivity

Auto, 100 - 6400, Expandable to 12800

Exposure Compensation

-3 EV to +3 EV (in 1/3 EV steps)

Focus

Auto
Manual
Continuous Auto

Video Clip Length

1920 x 1080
ALL-I11 min. (654 MB / min.)
1920 x 1080
IPB33 min. (255 MB / min.)
1280 x 720
ALL-I13 min. (583 MB / min.)
1280 x 720
IPB38 min. (196 MB / min.)
640 x 480
IPB97 min. (78 MB / min.)

Audio Recording

Built-in Mic: With Video
Optional External Mic: With Video

Performance

Continuous Shooting

Up to 5 fps

Shutter Lag

0.059 seconds

Self Timer

2 seconds, 10 seconds

Interval Recording

Yes

Connectivity

1x Audio Out, Canon N3, HDMI C (Mini), USB 3.0

Power

Battery

1x LP-E6N Rechargeable Lithium-ion Battery Pack

AC Power Adapter

AC Adapter Kit ACK-E6 (Optional)

Operating/Storage Temperature

Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 85%
