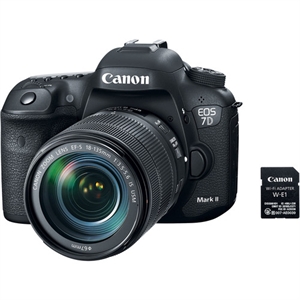

Canon EOS 7D MARK II 18-135 U + W-E1

Imaging

Lens Mount

Canon EF
Canon EF-S

Camera Format

APS-C (1.6x Crop Factor)

Pixels

Actual: 20.9 Megapixel
Effective: 20.2 Megapixel

Max Resolution

20 MP: 5472 x 3648

Aspect Ratio

3:2

Sensor Type / Size

CMOS, 22.4 x 15 mm

File Formats

Still Images: JPEG, RAW
Movies: H.264, MOV, MP4
Audio: AAC, Linear PCM

Bit Depth

14-Bit

Dust Reduction System

Yes

Memory Card Type

CompactFlash
SD
SDHC
SDXC

Focus Control

Focus Type

Auto & Manual

Focus Mode

Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S)

Autofocus Points

Phase Detection: 65 (65 Cross-Type)

Viewfinder/Display

Viewfinder Type

Pentaprism

Viewfinder Eye Point

22.00 mm

Viewfinder Coverage

100%

Viewfinder Magnification

Approx. 1.0x

Diopter Adjustment

-3 to +1 m

Display Screen

3" Rear Screen LCD (1,040,000)

Screen Coverage

100%

Diagonal Angle of View

Not Specified by Manufacturer

Exposure Control

ISO Sensitivity

Auto, 100-16000 (Extended Mode: 100-51200)

Shutter

Type: Electronic & Mechanical
Speed: 30 - 1/8000 Second , Bulb Mode

Remote Control

RC-6 (Optional)

Mirror Lock-Up

Not Specified by Manufacturer

Metering Method

Center-Weighted Average Metering, Evaluative Metering, Partial Metering, Spot Metering

Exposure Modes

Modes: Aperture Priority, Bulb, Custom, Intelligent Auto, Manual, Program, Shutter Priority
Metering Range: EV 0.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps)

Buffer/Continuous Shooting

Up to 10 fps

White Balance Modes

Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight

Flash

Flash Modes

Not Specified by Manufacturer

Built-in Flash

Yes

Guide No.

Not Specified by Manufacturer

Max Sync Speed

1 / 250 Second

Flash Compensation

-3 EV to +3 EV (in 1/3 or 1/2 EV steps)

Dedicated Flash System

eTTL

External Flash Connection

Hot Shoe, PC Terminal

AV Recording

Video Recording

Yes

File Size

1920 x 1080p (Full HD)
1920 x 1080p (Uncompressed)
1280 x 720p (HD)
640 x 480p (SD)

Aspect Ratio

16:9

Frame Rate

@ 1920 x 1080: 60 fps, 30 fps, 24 fps
@ 1280 x 720: 60 fps, 30 fps
@ 640 x 480: 30 fps

Exposure Control

Auto
Manual: Shutter Speed, Aperture, ISO

Focus

Auto
Manual
Continuous Auto

Max Video Clip Length

1920 x 1080: 29 Minutes, 59 Seconds
1280 x 720: 29 Minutes, 59 Seconds
640 x 480: 29 Minutes, 59 Seconds

Audio Recording

Built-In Mic: With Video
Optional External Mic: With Video

Performance

Start-up Time

0.1 seconds

Shutter Lag

0.055 seconds

Self Timer

10 Seconds, 2 Seconds

Interval Recording

Yes

Connectivity

1/8" Headphone, 1/8" Microphone, HDMI C (Mini), USB 3.0

Wi-Fi Capable

Yes

Power

Battery

1 x LP-E6N Rechargeable Lithium-Ion Battery Pack

AC Power Adapter

ACK-E6 (Optional)

Operating/Storage Temperature

Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 85%

Physical

Dimensions (W x H x D)

5.9 x 4.4 x 3.1" / 148.6 x 112.4 x 78.2 mm

Weight

2.002 lb / 910 g with battery and memory card

Kit Lens

Focal Length

18 - 135mm
Comparable 35mm Focal Length: 28.8 - 216 mm

Aperture

Maximum: f/3.5 - 5.6

Angle of View

74° 20' - 11° 30'

Minimum Focus Distance

1.28' (39 cm)

Elements/Groups

16 / 12

Autofocus

Yes

Image Stabilization

Yes

Filter Thread

Front: 67 mm

Dimensions (DxL)

Approx. 3.05 x 3.78" (77.4 x 96 mm)

Weight

1.13 lb (515 g)

Packaging Info

Package Weight

5.15 lb

Box Dimensions (LxWxH)

9.7 x 7.5 x 5.9"
