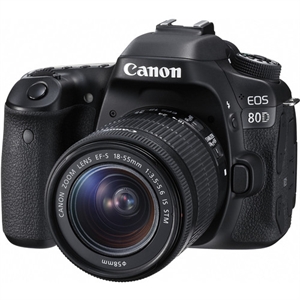

Canon EOS 80D (W) 18-55 IS STM

Imaging

Lens Mount

Canon EF
Canon EF-S

Camera Format

APS-C (1.6x Crop Factor)

Pixels

Actual: 25.8 Megapixel
Effective: 24.2 Megapixel

Max Resolution

24 MP: 6000 x 4000

Aspect Ratio

1:1, 3:2, 4:3, 16:9

Sensor Type / Size

CMOS, 22.5 x 15 mm

File Formats

Still Images: JPEG, RAW
Movies: MOV, MP4, MPEG-4 AVC/H.264
Audio: AAC, Linear PCM (Stereo)

Bit Depth

14-Bit

Dust Reduction System

Yes

Memory Card Type

SD
SDHC
SDXC

Focus Control

Focus Type

Auto & Manual

Focus Mode

Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S)

Autofocus Points

Phase Detection: 45 (45 Cross-Type)

Viewfinder/Display

Viewfinder Type

Pentaprism

Viewfinder Eye Point

22.00 mm

Viewfinder Coverage

100%

Viewfinder Magnification

Approx. 0.95x

Diopter Adjustment

-3.0 to +1.0 m

Display Screen

3" Rear Touchscreen Swivel LCD

Screen Coverage

100%

Diagonal Angle of View

170.0°

Exposure Control

ISO Sensitivity

Auto, 100-16000 (Extended Mode: 100-25600)

Shutter

30 Second , Bulb Mode

Remote Control

RC-6, RS-60E3, TC-80N3 (Optional)

Metering Method

Center-Weighted Average Metering, Evaluative Metering, Partial Metering, Spot Metering

Exposure Modes

Modes: Aperture Priority, Manual, Program, Shutter Priority
Metering Range: EV 1.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps)

Buffer/Continuous Shooting

Up to 7 fps at 24.2 MP for up to 25 Frames in Raw Format
Up to 7 fps at 24.2 MP for up to 110 Frames in JPEG Format
Up to 3 fps at 24.2 MP

White Balance Modes

Tungsten, Cloudy, Fluorescent (White), Custom, Daylight, Flash, Color Temperature, Shade, Auto

Flash

Built-in Flash

Yes

Guide No.

39.37' (12 m) ISO100

Max Sync Speed

1 / 250 Second

Flash Compensation

-3 EV to +3 EV (in 1/3 or 1/2 EV steps)

Dedicated Flash System

eTTL

External Flash Connection

Hot Shoe

AV Recording

Video Recording

Yes, NTSC

Video Format

1920 x 1080p at 23.98, 29.97 fps (90 Mb/s MOV)
1920 x 1080p at 59.94 fps (60 Mb/s MOV)
1920 x 1080p at 23.98, 29.97 fps (30 Mb/s MP4)
1920 x 1080p at 29.97 fps (12 Mb/s MP4)
1280 x 720p at 59.94 fps (26 Mb/s MP4)
1280 x 720p at 29.97 fps (4 Mb/s MP4)

Aspect Ratio

16:9

Exposure Control

Auto: Shutter Speed, Aperture, ISO
Manual: Shutter Speed, Aperture, ISO

ISO Sensitivity

Auto/Manual, 100 - 12800, Expandable to 25600

Exposure Compensation

-3 EV to +3 EV (in 1/3 or 1/2 EV steps)

Focus

Auto
Manual
Continuous Auto

Max Video Clip Length

1920 x 1080: 29 Minutes, 59 Seconds

Audio Recording

Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo)

Performance

Shutter Lag

0.06 seconds

Self Timer

10 Seconds, 2 Seconds

Interval Recording

Yes

Connectivity

1/8" Headphone, 1/8" Microphone, HDMI C (Mini), USB 2.0

Wi-Fi Capable

Yes

Power

Battery

1 x LP-E6N Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1865 mAh

AC Power Adapter

AC-E6N (Optional)

Operating/Storage Temperature

Operating
32 to 113°F (0 to 45°C)
Humidity: 0 - 85%

Physical

Dimensions (W x H x D)

5.5 x 4.1 x 3.1" / 139.0 x 105.2 x 78.5 mm

Weight

1.606 lb / 730 g based on CIPA guidelines

Kit Lens

Focal Length

18 - 55mm
Comparable 35mm Focal Length: 28.8 - 88 mm

Aperture

Maximum: f/3.5 - 5.6
Minimum: f/22 - 38

Angle of View

74° 20' - 27° 50'

Minimum Focus Distance

9.84" (25 cm)

Magnification

0.36x

Maximum Reproduction Ratio

1:2.78

Elements/Groups

13 / 11

Diaphragm Blades

7

Autofocus

Yes

Image Stabilization

Yes

Filter Thread

Front: 58 mm

Dimensions (DxL)

Approx. 2.72 x 2.96" (69.1 x 75.2 mm)

Weight

7.23 oz (205 g)

Packaging Info

Package Weight

4.1 lb

Box Dimensions (LxWxH)

9.6 x 7.1 x 5.4"
