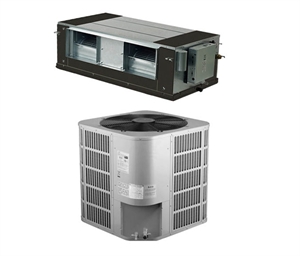

MIDEA DUCTED SPLIT AIR CONDITIONER MTA-48WN1/MTA-60WN1

>Suitable for using refrigerant R410A >3-speed indoor fan for enhanced comfort >Blue hydrophilic n & inner grooved copper pipe >Air intake lter as standard >Tropical design with Copeland compressor >Outdoor fan motor insulation class: IP44 >Certied by ESMA >Long piping length. Max. equivalent piping >length: 55m; Max. vertical distance between >ODU and IDU: 46m. (Notes: ODU is up.)

Brand: Midea

Indoor unit			MTA-48WN1	MTA-60WN1
Outdoor unit			MOVTB-48CN1-R13C	MOVTB-60CN1-R13C
Power supply	Indoor unit	V/Ph/Hz	220-240/1/50	220-240/1/50
Power supply	Outdoor unit	V/Ph/Hz	380-415/3/50	380-415/3/50
Cooling	T1 Capacity	Btu/h	48,000	57,000
	T3 Capacity	Btu/h	41,500	50,700
	EER (T1/T3)	Btu/h.W	11.6/8.1	11.7/8.1
Compressor			Scroll (Copeland)	Scroll (Copeland)
Motor	Indoor unit		PSC type	PSC type
Motor	Outdoor unit		AC type	AC type
Air flow	Indoor unit*	CFM	1,700/1,550/1,400	2,000/1,700/1,550
Air flow	Outdoor unit	CFM	3,394	4,029
Indoor standard ESP		Pa	37	37
Indoor ESP range		Pa	0-100	0-100
Noise level	Indoor unit	dB(A)	52	54
Noise level	Outdoor unit	dB(A)	68	68
Connection pipe	Liquid side	mm	9.52	9.52
Connection pipe	Gas side	mm	22.2	22.2
Net dimension (W×H×D)	Indoor unit	mm	1,300×420×690	1,300×420×690
Net dimension (W×H×D)	Outdoor unit	mm	710×843×710	740×843×740
Packing (W×H×D)	Indoor unit	mm	1,430×450×768	1,430×450×768
Packing (W×H×D)	Outdoor unit	mm	738×877×738	768×877×768
Net/Gross weight	Indoor unit	kg	70/77.5	70/77.5
Net/Gross weight	Outdoor unit	kg	89/93	98/102
